Self-adhesive PET Photoluminescent Film
PET Photoluminescent Film: Great for Cutting & Eco Friendly

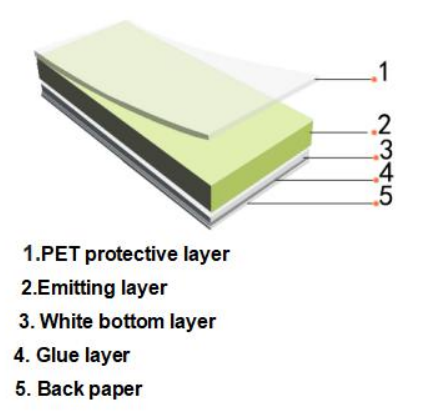

MINHUI's pressure sensitive PET photoluminescent film is made of soft and flexible PET plastic and our strontium aluminate glow in the dark powder. It is suitable for engraving, plotter cutting, and die-cutting, etc, and the products made have clean edges without stretching or cracking.
PET photoluminescent film is non-toxic, non radioactive and environmentally friendly. After 10-20 minutes of light exposure, it can glow in the dark for over 12 hours (decay to 0.3mcd/sqm).
Applications span safety-critical and commercial uses including: evacuation route markings, staircase edge indicators, equipment position labels, decorative glow stickers, toys, branded consumer packaging, etc.
Key Features:
1. High luminance: ISO 17398/PSPA Class B to Class E.
2. Non-tearable, glossy and smooth surface: can be cleaned with detergent.
3. Long service life: 6~8 years indoor, 4~6 years outdoor, can be applied in-20~65℃ environment.
4. Environmentally Friendly: halogen-free material, no toxic HCI fumes.
5. Strong adhesive: easy & quick installation, stable bond to smooth surface with no primer required.
6. Thin and flexible film: great for sticking on arch surface
PET Photoluminescent Film Specification
| Model | Thickness (mm) |
Size | Afterglow Intensity (mcd/㎡) |
ISO 17398/PSPA Luminance Class | Appearance (Daytime) |
Glowing color (Night) |
|
| 10 min | 60min | ||||||
| MHF-GP030 | 0.16 | 1.24M*50M | >50 | >7 | Class B |  Light-yellow |
 Yellow-green |
| MHF-GP050 | 0.16 | >70 | >10 | Class B+ | |||
| MHF-GP100 | 0.18 | >100 | >14 | Class B++ | |||
| MHF-GP150 | 0.21 | >150 | >20 | Class C | |||
| MHF-GP200 | 0.25 | >210 | >30 | Class C+ | |||
| MHF-GP500 | 0.55 | >500 | >68 | Class E+ | |||
| MHF-GP300Y | 0.35 | >280 | >35 | Class D | Fluorescent yellow | ||
1. Test Standard: DIN 67510-part 1, D65 Standard light source after being excited for 5 min by 1000 LUX.
2. For luminance statistics under other international standards such as ASTM E2073, please contact us with your requirement.
3. We also manufacture PVC photoluminescent film, acrylic photoluminescent film and HTV photoluminescent film.
Need a quotation or sample for evaluation?
Contact us with your application details and we will reply within 24 hours
Customization Service
We provide customization service for our photoluminescent film including:
1. Roll size
2. Afterglow intensity
3. Whether it comes with adhesive layer
4. If you want finished products after cutting, please send us your design.
Why Source Your Photoluminescent Film From Minhui Luminous
Founded in 2003, Zhejiang Minhui Luminous Technology Co., Ltd. is one of China's most established and largest photoluminescent material manufacturers. Our 47,000 m² facility, backed by a $16M USD investment, supplies safe and sustainable photoluminescent solutions to clients across 50+ countries.
● Stable Supply: We operate 7 kiln lines for photoluminescent pigment and 9 automated coating and lamination lines for photoluminescent film, with an annual film output exceeding 15 million m². Order directly from our source factory for batch consistency and cost effectiveness. Fast worldwide shipping.
● Tested Quality Control: Every production batch is strictly tested for luminance, adhesive peel strength, and print compatibility. From Class A to Class E, we are the one of the few manufacturers worldwide that can supply the full performance range. With DNV-GL, IMO, DIN, MED B+D, CCS certification.
● R&D Capability for Customization: We can develop photoluminescent film tailored to your specific luminance grade, glow colour, roll dimensions, surface finishes, and adhesive requirements. Backed with our 5 specialized laboratories, 200+ global patents, and annual R&D investment of over 500,000 USD.
● Setting Photoluminescent Standard: Minhui is a management member of the Photoluminescent Safety Products Association (PSPA), a member of the China Rare Earth Association, and a key contributor to 3 national and industry standards for photoluminescent products in China. We don't just manufacture to standards, we create them.
● Global OEM/ODM: Operating under ISO 9001 quality management,w are the behind-the-scenes manufacturer for recognised brands across the world.
Do not know which model to choose? Need custom roll size?
Our technical team will match you to the right grade.
Frequently Asked Questions
A: PET photoluminescent film is a soft self-adhesive glow-in-the-dark plastic vinyl made with strontium aluminate phosphor and polyethylene terephthalate (PET) plastic substrate. It absorbs ambient light during the day and re-emits it as a visible yellow-green glow in darkness for over 12 hours(decay to 0.3mcd/sqm), with no electricity required.
It is non-toxic, non-radioactive and eco-friendly. PET glow in the dark film is widely used for making evacuation route markings, floor-path indicators, decorative stickers, toys, consumer products, etc.
A: Class C or Class D is a sub-classification from the globally recognized performance grading system for photoluminescent materials.ISO 17398 has listed 4 sub-classification: A through D. The PSPA (Photoluminescent Safety Products Association) has listed 7 classes (A through G). Each class specifies the minimum luminance (mcd/m²) the photoluminescent material must maintain at 2, 10, 30, and 60 minutes after the light source is removed.
Class C is the recommended minimum for safety signage and evacuation systems per ISO 16069, ISO 17398 and PSPA.
| Class | 2 min (mcd/m²) | 10 min (mcd/m²) | 30 min (mcd/m²) | 60 min (mcd/m²) |
|---|---|---|---|---|
| A | 108 | 25 | 7 | 3 |
| B | 210 | 50 | 15 | 7 |
| C | 690 | 140 | 45 | 20 |
| D | 1,100 | 260 | 85 | 35 |
| E | 1,800 | 400 | 120 | 55 |
| F | 2,300 | 520 | 155 | 70 |
| G | 3,000 | 650 | 190 | 80 |
Minhui's MHF PET film covers Class B (MHF-GP030) through Class E (MHF-GP500), the class for each model is shown in the specification table. For applications requiring higher luminance, please use our photoluminescent rigid sheets.
A: PET glow in the dark film is flexible and thin, with a smooth and glossy finish. Therefore, we recommend it for cutting process such as die-cutting, plotter-cutting, engraving, etc.
For printing application we recommend using our PVC based glow in the dark film.
If you strictly require PET glow in the dark film for printing, we have a specialized model for printing, printable with PET printing ink. Please consult us for more details.
A: The honest answer is: it depends on how you measure it, and most suppliers aren't measuring it at all.
Our photoluminescent film exceeds 12 hours of afterglow (decaying to >0.3 mcd/m²) under standardized test conditions(excitation at D65 1,000 lux for 5 minutes). But a glow duration figure stated in hours alone is a marketing term, not a technical one, and here's why it matters.
When a supplier claims their photoluminescent film "glows for 4 hours" or "8 hours," that figure is typically based on their subjective judgment, just someone in a dark room deciding when they can no longer see a glow. Human eyes vary significantly in dark-adaptation sensitivity, and what one person perceives as "still glowing" another may consider invisible. Without a calibrated luminance meter and the afterglow brightness statistic, these hour claims have no scientific basis and cannot be verified, reproduced, or compared between products.
The correct way to specify glow duration is: luminance (mcd/m²) at a defined time after a defined excitation. The most used international standard for testing photoluminescent film's luminosity is DIN 67510-1. This allows meaningful comparison between products and suppliers. All Minhui Luminous photoluminescent film data is tested to this standard: excitation at D65 1,000 lux for 5 minutes, with luminance values at 10 minutes and 60 minutes stated for every grade.
When evaluating any photoluminescent film supplier, ask for: luminance in mcd/m² at 10 min and 60 min, the excitation conditions used, and the test standard referenced. A professional supplier will have no hesitation providing it.
MOQ:
For glow in the dark film, our standard MOQ starts from 1 roll. For new customer, we can make the roll size into 1.24m*25m. We also provide free sample for evaluation before bulk ordering.
Lead Time:
For standard models and order size < 10 rolls, the lead time is generally 1-3 days.
We offer customization including size, thickness, self-adhesive backing, etc. For customization MOQ and lead time, please consult our sales team with details.
How To Order:
Order from us is very simple. You can contact us by filling out the contact us form, or send your inquiry directly to our email sales@mphotoluminescent.com. Please let us know your application, requirement and order amount, then we will reply to you by email and provide a quotation to you within 24 hours. We always provide free sample for evaluation before bulk orders.
Payment:
We accept bank transfer, PayPal, Western Union, VTB and Alibaba pay.
Shipping:
We offer worldwide shipping. For small orders, we partner with express courier including DHL, FEDEX and UPS. For large orders, we ship by air/sea/railway.
Shipping time depends on the volume, shipping company and logistic condition. For express courier, it usually takes 3-6 days to arrive in Asia, 5-8 days to arrive in North America, Australia and Europe, 6-9 days to arrive in South America.
