Full Range of Reflective HTV Tape

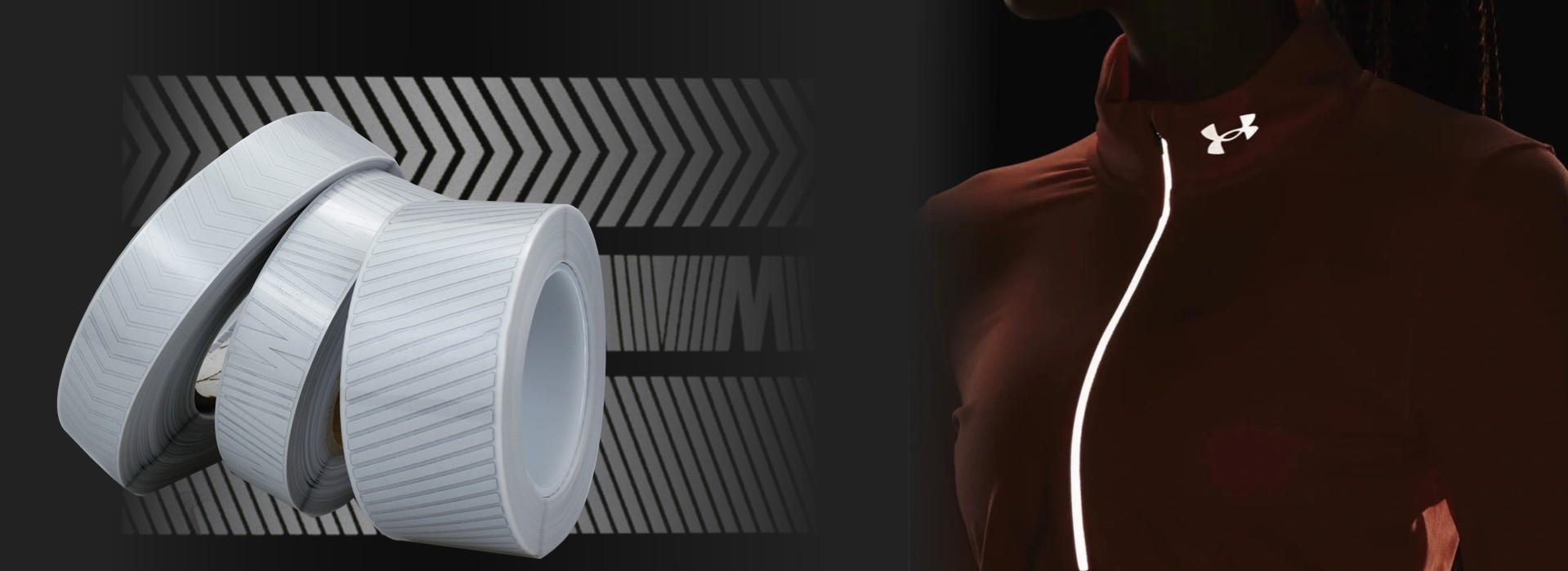

Reflective heat transfer vinyl with a grey appearance, covering certified high visibility grades for PPE and workwear, general purpose grades for warning tape and ribbon, and economic grades for bags, shoes and fashion wear. Laser/plotter/die cutting friendly. Clean edge after ironing. 1-140cm width customization.
Day
Night
MHR-6271
- Reflectivity ≥380 cd/(lx·m²)
- Wash 25 wash, 5 dry clean
- Base Material PES
Day
Night
MHR-6273
- Reflectivity ≥330 cd/(lx·m²)
- Wash 25 wash, 5 dry clean
- Base Material PES
Day
Night
MHR-6270
- Reflectivity ≥260 cd/(lx·m²)
- Wash 10 wash cycles
- Base Material PES
Day
Night
MHR-6276
- Reflectivity ≥260 cd/(lx·m²)
- Wash 10 wash cycles
- Base Material PES
Day
Night
MHR-6272
- Reflectivity ≥200 or ≥280
- Wash 5 wash cycles
- Base Material TPU
Day
Night
Day
Night
Compare and Choose The Right Reflective HTV
| Model | Reflectivity | Wash Durability | Standards | Typical Use |
|---|---|---|---|---|
| Certified hi vis: Choose when the finished product must pass EN ISO 20471 or ANSI 107 standards. | ||||
| MHR-6271 | 380 cd/(lx·m²) | 25 wash, 5 dry clean | EN ISO 20471, ANSI 107 OEKO-TEX 100 | Hi vis PPE, workwear |
| MHR-6273 | 330 cd/(lx·m²) | 25 wash, 5 dry clean | EN ISO 20471, ANSI 107 OEKO-TEX 100 | Hi vis PPE, workwear |
| General purpose: Choose for warning tape, woven ribbon, and clothing trims. Thick PET film for intricate patterns and logo design. | ||||
| MHR-6270 | 260 cd/(lx·m²) | 10 cycles | OEKO-TEX 100 | Warning tape, ribbon |
| MHR-6276 | 260 cd/(lx·m²) | 10 cycles | OEKO-TEX 100 | Ribbon, clothing trims |
| Economic: Choose for bags, shoes, fashion wear, and elastic fabric that require a balance of visibility and cost-efficiency. | ||||
| MHR-6275 | 260 cd/(lx·m²) | 5 cycles | OEKO-TEX 100 | Bags, shoes, fashion |
| MHR-6275C | 160 cd/(lx·m²) | Not rated | OEKO-TEX 100 | Everyday casual wear |
| MHR-6272 | 200/280 cd/(lx·m²) | 5 cycles | OEKO-TEX 100 | Elastic ribbon, webbing |
Not sure which grade fits your garment?
Tell us the garment type and we will point you to the right HTV.
Where Bright Reflective HTV Is Used
Bright reflective HTV is used wherever wearers need to be seen: high-visibility safety vests, work jackets, coveralls and uniforms; rainwear and outdoor gear; sportswear and cycling apparel; school uniforms; and accessories such as bags and footwear trim.
How To Use And Care For Bright Reflective HTV
Our reflective HTV can be die-cut, plotter-cut, or laser-cut into all kinds of intricate designs and patterns, then heat-pressed directly onto fabric.
We also provide pattern customization service. Send us your design, and we will pre-cut the reflective HTV for you.
Heat press the reflective HTV at 135°C to 155°C for 9 to 15 seconds with 5 to 6 kg of pressure, and cold peel after the film cools.
For adhering to waterproof fabric, we recommend use a high-frequency welding machine.
Always run a test press first, then adjust the parameters according to your garments and machines.
Machine wash at a maximum of 60°C with standard detergent (no bleach); keep drying below 50°C and iron at medium heat without steam. Actual service life depends on the cleaning method and wear conditions.
Get your reflective HTV quote today
Send us your grade, width and quantity. Our team will reply with pricing and arrange samples in 12 hours.
Certifications & Test Reports
Our certified hi-vis reflective HTV models, MHR-6271 and MHR-6273, are tested to the retroreflective performance requirements of EN ISO 20471 and ANSI/ISEA 107. Every MODEL in our Bright reflective HTV range is certified to OEKO-TEX Standard 100. Third-party test reports available after purchase. See our full reflective certificates & test reports.
Buy Reflective Fabric From Source Chinese Manufacturer
Minhui Luminous runs 9 automated coating lines for our reflective fabric and reflective heat transfer vinyl tape. Our ISO 9001 factory is located in Jinhua, Zhejiang, giving us direct control over quality, lead time, and custom specifications.
Frequently Asked Questions
Bright reflective heat transfer vinyl has a grey reflective surface that turns bright when light hits it at night.
It is built with a PET carrier film, high refractive index glass beads and a PES/TPU hot melt adhesive, so it cuts cleanly and presses onto fabric with a clean edge and easy weeding.
Bright reflective HTV has a grey surface color, with reflectivity from about 160 up to 380 cd/(lx-m²), and wash durability of up to 25 wash cycles.
Silver reflective HTV has a silver surface color, with higher reflectivity up to 500cd/(lx-m²), and wash durability of up to 75 wash cycles.
Choose Bright reflective HTV when you want a more economical option, and silver when you need the highest brightness for hi-vis PPE or high-end garments.
MHR-6272 reflective heat transfer vinyl has great stretch and is made for elastic fabric, ribbon, and webbing.
It is also available with an optional sticky lining that secures the reflective HTV in place during heat pressing. This prevents any shifting, ensuring a faster, easier, and more precise application process.
Yes, we provide width/length customization service. The width of the custom option is from 1cm up to 140 cm. Length custom option is flexible.
Send us your size requirement and we will quote you in 12 hours.
Yes. Send your artwork, and we will handle the rest. We can deliver ready-to-press reflective logos and patterns, so your team only needs to heat press them onto garments.
We offer free samples for evaluation, flexible order volumes, and full OEM/ODM service for your brand and packaging.
Contact us with your target reflective HTV grade, width, and quantity for a quote.
Order from us is very simple. You can contact us by filling out the contact us form, or send your inquiry directly to our email sales@mphotoluminescent.com.
You can also call us at 86-579-88948789. Our factory's work time is from 8 AM to 5 PM (UTC+8) Monday to Saturday.
Please let us know your application, requirement, and order amount, then we will reply to you by email and provide a quotation to you within 24 hours. We always provide a free sample for evaluation before bulk orders.
Payment:
We accept bank transfer, PayPal, Western Union, VTB, and Alibaba Pay.
Shipping:
We offer worldwide shipping.
For small orders, we partner with express couriers, including DHL, FEDEX, and UPS.
For large orders, we ship by air/sea/railway.
Shipping time depends on the volume, shipping company, and logistic conditions. For express courier, it usually takes 3-6 days to arrive in Asia, 5-8 days to arrive in North America, Australia, and Europe, 6-9 days to arrive in South America.
Factory Visit:
Our factory is located in No. 668, Yingbin Road, Shanghua District, Lanxi City, Zhejiang Province, China.
We welcome you to visit our factory at any time.
