Product Type
MH Series Strontium Aluminate Photoluminescent Pigment

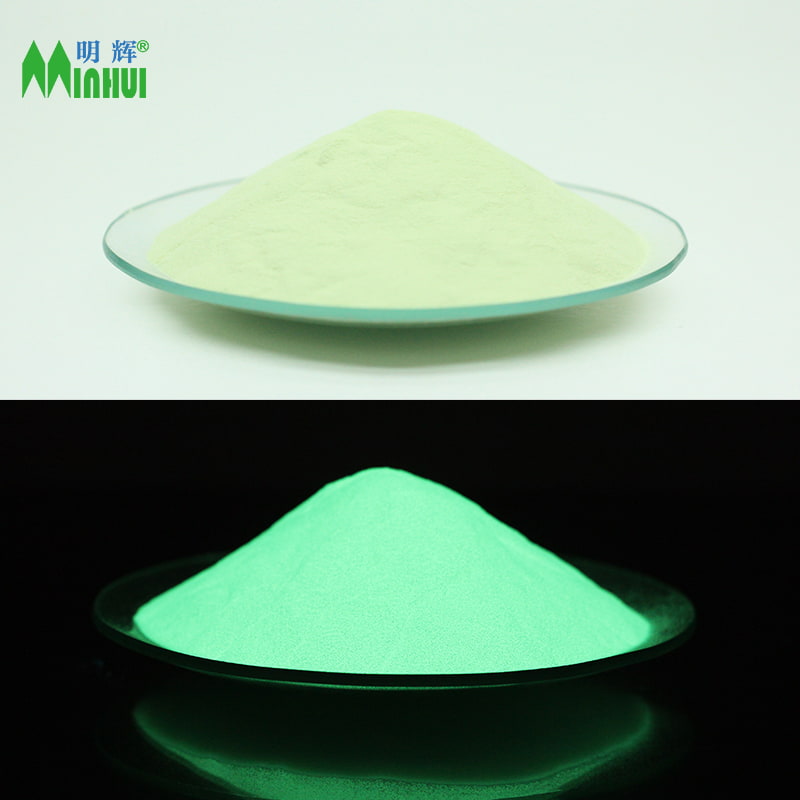

Yellow-Green Photoluminescent Pigment
MHG Series
View Specs →

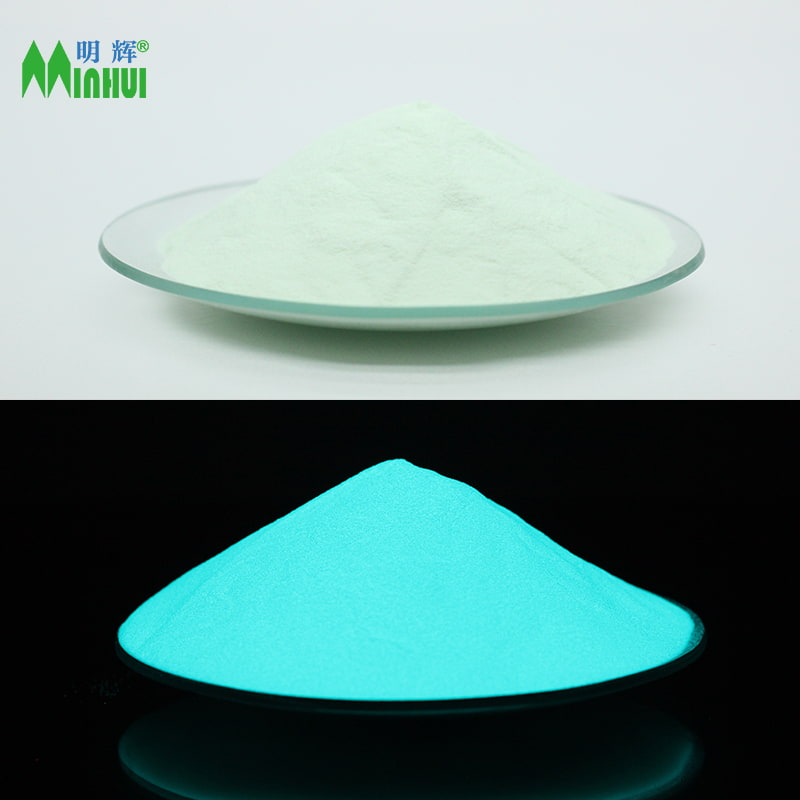

Blue-Green Photoluminescent Pigment
MHB Series
View Specs →

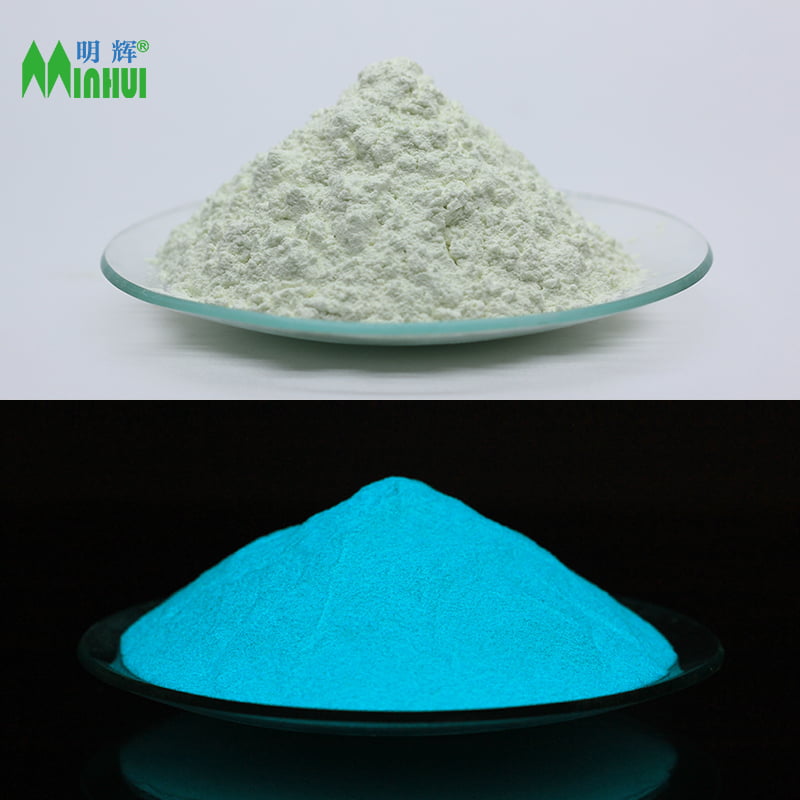

Sky Blue Photoluminescent Pigment
MHSB Series
View Specs →

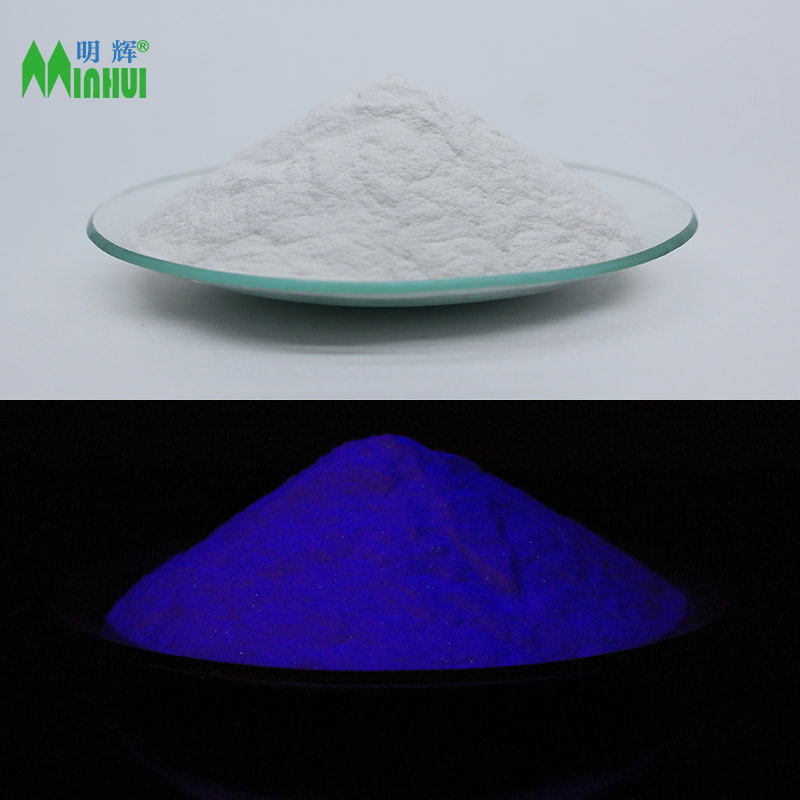

Purple Photoluminescent Pigment
MHP Series
View Specs →
Full compliance documentation available after purchase. Certificates Preview →
Selection Guide
How to Choose the Right Photoluminescent Pigment Model
We make 30+ models with 5 luminosity grades and 8 particle sizes for different industries and processes.
The number in the model name indicates the luminosity grade. Higher numbers mean higher initial brightness and longer afterglow duration.
All MHG Series strontium aluminate pigments deliver afterglow duration of 12 hours or more, measured to decay to 0.3 mcd/m² under DIN 67510 excitation conditions.
Grade selection depends on your product requirements and target market. Not sure which grade fits your product? Ask our technical team →
Grade 8 — Ultra High Intial Glow, High Afterglow
MHG-8B / 8C / 8D / 8DE / 8FHighest brightness in the first 2–10 minutes after excitation. Best for safety-critical applications, signage, and premium products.
Grade 6 — Ultra High Afterglow, High Initial Glow
MHG-6B / 6C / 6DE / 6EH / 6F / 6GHigh afterglow and prolonged glow hours. Best for safety-critical applications, signage, watches and premium products.
Grade 4 — Balanced Performance, Most Popular Models
MHG-4B / 4C / 4D / 4DE / 4EH / 4F / 4GGood initial brightness and afterglow. Suitable for most industrial and commercial products.
Grade 2 — Balanced Performance & Cost Effective
MHG-2T / 2DE / 2FEconomy grade with high initial brightness and balanced afterglow. Suitable for most industrial and commercial products where cost control is a priority.
Grade 1 — Entry Level
MHG-1C / 1D / 1DYFor products with basic glow performance requirement. Suitable for novelty items, non-safety decorative use, etc.
Particle size selection is critical. A particle size that is too large may clog your screen or nozzle and cause uneven dispersion. A particle size that is too small will reduce brightness and afterglow duration.
As a general rule: larger particles produce higher initial brightness and longer glow duration. .
Use the table below as a starting reference.Contact us to confirm before ordering →
| Production Process | Recommended Particle Size (D50) | Recommended Models | Notes |
|---|---|---|---|
| Screen Printing | 40 μm or 30μm (smaller screen) | MHG-8D / 6D / 4D / 2D / 8DE / 6DE / 4DE / 2DE | Fine particle passes through mesh screens without clogging. Suitable for solvent and water-based ink systems. |
| Injection Moulding | Around 40 μm | MHG-2T / 4D | Good dispersion in plastic bases. With balanced initial and afterglow luminosity | Textile Printing | 30 μm | MHG-1DYW | Fast light absorption and high initial glow. Waterproof for wash-resistant results. |
| Casting / Reverse Mould | 95 μm or 60 μm | MHG-4B / 4C / 1C | Large particle maximises pigment density and brightness in resin casting. |
| Brush / roller coating | 60 μm or 40 μm | MHG-6C / 4C / 4D / | Balance between brightness and coating smoothness. Suitable for knife-over-roll and painting process. |
| Spray Painting | 24-30 μm | MHG-4EH / 6EH / 4DE / 2DE | Fine particle for spray application in solvent or water-based paint systems. Good suspension stability and even distribution. | Fiber Drawing | <5 μm or 10 μm | MHG-6F / 6G / 4F / 4G | Ultra-fine particle for making fibers. |
| Ceramic / Glass / Road Marking | 150–300 μm | MHG-6BA or MHG-6A | Coarse particle for embedding into ceramic glaze, glass surface, or road marking paint. High visibility in outdoor environments. |
Free Samples · 24-Hour Response
Not sure which grade fits your process?
Why Choose Us
Why Source from Zhejiang Minhui Luminous?
China's leading photoluminescent materials manufacturer: from pigments to finished glow in the dark products.
23 Years
Industry Experience
ISO 9001
Certified Factory
47,000 m²
Factory Area
150+
Employees
500+ Tons
Annual Pigment Output
- •
Unmatched Production Capacity: 7 kiln lines, 70+ powder processing units. No supply chain risk or middlemen.
- •
R&D Leadership: 5 specialist labs, 200+ global patents, $500K+ annual R&D investment; custom grades developed to your spec.
- •
Standard-Setter: Key contributor to 3 Chinese national/industry standards; management member of the international Photoluminescent Safety Products Association (PSPA), and Chinese Rare Earth Association.
- •
Global OEM/ODM: ISO 9001 quality system; REACH, RoHS, ASTM compliance documentation ready for B2B procurement.
- •
Free Samples: Trial orders accommodated; technical team provides grade recommendation before sampling.
Quality Assurance
4-Stage Quality Control Process
Every batch of our photoluminescent pigment passes four mandatory checkpoints before leaving our factory.
Material Analysis
Long-term partnerships with qualified suppliers ensure every production starts with consistent high-purity raw material.
Sintering Precision
Atmosphere-controlled kilns with real-time temperature curve monitoring
Luminance Test
Every batch tested for brightness and particle size. Full traceability for every single bag shipped.
Batch Traceability
Final COA generated. Batch samples retained for 5+ years, available for re-testing if any post-delivery dispute arises.
FAQ
Frequently Asked Questions
Strontium aluminate photoluminescent pigment (SrAlzO4:Eu2+,Dy3+) is an inorganic compound that absorbs energy from visible light or UV radiation and releases it slowly as visible glow in the dark.
The added rare earth elements act as the luminescence center and energy trap that stores charge and prolongs afterglow duration.
Compared to the traditional zinc sulfide-based photoluminescent pigment (ZnS:Cu), strontium aluminate based photoluminescent pigment delivers 10x higher brightness and afterglow duration.
Yes, the 12-hour figure is measured according to DIN 67510, using a D65 light source at 1000 lx for 5 minutes of excitation, and tracking afterglow until luminance decays to 0.3 mcd/m², which is the threshold at which the human eye can still detect glow in darkness.
In practice, photoluminescent pigment is a low-intensity light source designed for dark environments. Whether it appears "bright enough" at any given moment is subjective, some users find the glow clearly sufficient after several hours, while others may feel it it not bright enough. Perception also varies with environment: in a room with residual ambient light, the glow will appear dimmer than in darkness.
For this reason, international standards such as ISO 17398 and DIN 67510 do not measure glow duration alone. The two most meaningful performance indicators are luminance at 10 minutes and luminance at 60 minutes after excitation, measured in mcd/m². These values give a consistent, objective basis for comparing pigment performance and selecting the right grade for your application.
Human eyes are most sensitive to light in the 507-555 nm range in low-light conditions, and yellow-green strontium aluminate photoluminescent pigment has a emission wavelength of around 520nm. Therefore human eyes are very sensitive to green glow color in dark environments.
Also, yellow-green glow color is made with strontium aluminate based photoluminescent pigment, which is the type of photoluminescent pigment that has the strongest afterglow intensity.
This makes green strontium aluminate pigment the global standard for safety signage, emergency evacuation markings, and all applications where maximum visibility in darkness is critical.
For water-based paint, ink, or any application with moisture exposure, please ask us for the encapsulated/waterproof version, it has the same glow performance as non-waterproof version, but with full moisture resistance.
Non-waterproof version is suitable for solvent-based paints, inks, plastics, epoxy resins, and dry applications.
Strontium aluminate photoluminescent pigment is suitable for application including printing, coating, spray painting, casting, injection molding, fiber drawing, powder coating, ceramic, glass, and so much more.
We recommend you to add the pigment into transparent or semi-transparent medium so its luminosity will not be influenced.
Always verify compatibility with a small-scale trial before full production. To get the best model, please send us your product type and application process, then we can recommend you with the most suitable grain sizes and luminosity.
Yes. Our photoluminescent pigment is non-toxic, non-radioactive, and skin safe. It is suitable for making most industrial and consumer products.
Our strontium aluminate photoluminescent pigment is tested and complies with: EU REACH Regulation, RoHS Directive, ASTM F963-16.
Full compliance documentation and test reports are available upon purchase.
Our MOQ starts from 1KG.
We provide free samples to test before ordering in bulk. Contact us with your product type and application details, then we will recommend the most suitable grade and arrange sample shipment.
For bulk orders, please inquire directly for pricing.
How To Order:
Order from us is very simple. You can contact us by filling out the contact us form, or send your inquiry directly to our email sales@mphotoluminescent.com.
You can also call us at 86-579-88948789, our factory's work time is from 8AM to 5PM (UTC+8) Monday to Saturday.
Please let us know your application, requirement and order amount, then we will reply to you by email and provide a quotation to you within 24 hours. We always provide free sample for evaluation before bulk orders.
Payment:
We accept bank transfer, PayPal, Western Union, VTB and Alibaba pay.
Shipping:
We offer worldwide shipping.
For small orders, we partner with express courier including DHL, FEDEX and UPS.
For large orders, we ship by air/sea/railway.
Shipping time depends on the volume, shipping company and logistic condition. For express courier, it usually takes 3-6 days to arrive in Asia, 5-8 days to arrive in North America, Australia and Europe, 6-9 days to arrive in South America.
Factory Visit:

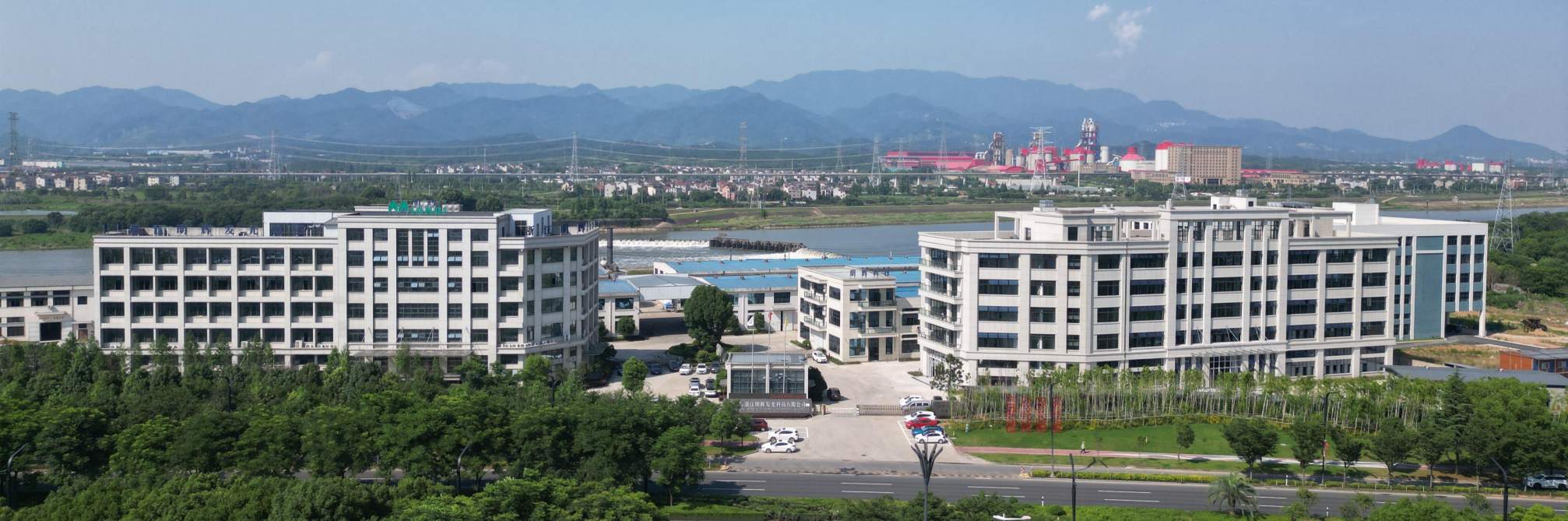

Our factory is located in No. 668, Yingbin Road, Shanghua District, Lanxi City, Zhejiang Province, China.
We welcome you to visit our factory at any time.
