MHC-9371B Photoluminescent and Reflective HTV Tape
MHC-9371B Photoluminescent And Reflective Heat Transfer Vinyl Description
EN ISO20471 & ANSI 107-2020 Reflectivity
OEKO-TEX 100
50X Wash Durability
MHC-9371B is our patented glow-in-the-dark and reflective HTV with a smooth and flat surface. The glow and reflective material is integrally formed, giving it a larger continuous luminous area and a stronger, longer afterglow.
Traditional reflective materials fail without an active light source, but this HTV bridges that gap: it reflects when there is light, and glows in the dark when the lights go out. The dual luminous functions feature 12 hours of glow time (measured down to 0.3 mcd/m²) and high visibility, not only enhancing garment aesthetics but also ensuring reliable safety 24/7.
MHC-9371B is non-toxic, non-harmful, and non-radioactive. It is a perfect fit for making hi-vis PPE, workwear, firefighter turnout gear, police uniforms, miner workwear, food delivery workwear, night running gear, casual wear, etc.
MHC-9371B Photoluminescent And Reflective HTV Specification

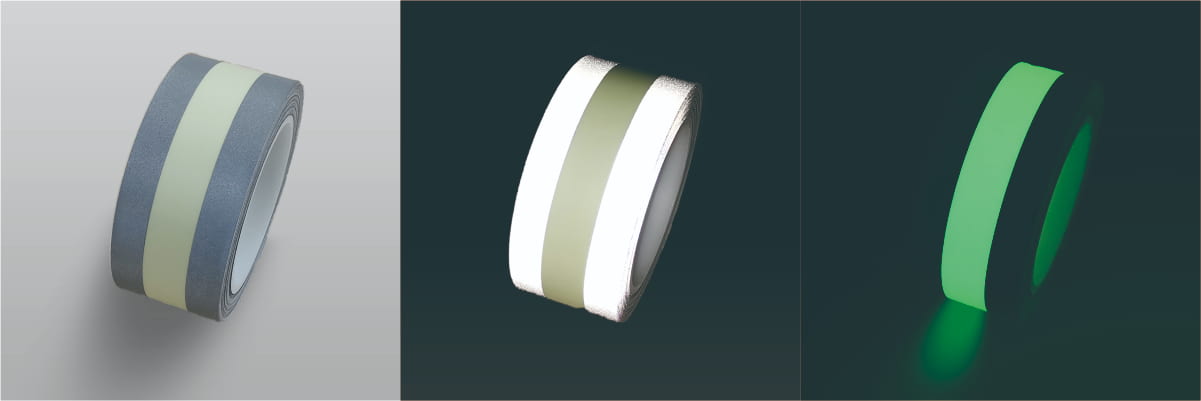

We recommend making MHC-9371B into a double photoluminescent stripe or single photoluminescent stripe for maximum luminosity.
We can also customize the tape size, patterns, luminosity grades, and reflectivity levels to meet your specific requirements.
| Product code | MHC-9371B |
| Product type | Photoluminescent and reflective heat transfer vinyl with integrated(one-piece) construction |
| Base material | PES hot melt adhesive |
| Afterglow Intensity | ISO 17398 Class C: 10 min >150 mcd/m², 60 min >20 mcd/m² Test Standard: DIN 67510-1, D65 light source, 1000 lux, 5 min excitation |
| Reflectivity | EN ISO 20471 and ANSI/ISEA 107: ≥330 cd/(lx·m²) |
| Material Safety | OEKO-TEX 100 Standard |
| Wash Durability | 50 washes at 60°C (ISO 6330) and 25 dry clean cycles (ISO3175) |
| Width | 2 to 5 cm, customized width available |
Why Choose MHC-9371B Photoluminescent And Reflective HTV
Photoluminescent performance: ISO 17398 Class C
Class C is the internationally recognized minimum luminosity grade for safety signage and evacuation systems.
Reflective performance: EN ISO 20471 and ANSI/ISEA 107
Retroreflective tested ≥330 cd/(lx·m²).
OEKO-TEX Standard 100
We are the first Chinese manufacturer to pass the OEKO-TEX 100 standard for our glow-in-the-dark and reflective heat transfer vinyl and fabric.
Clean Finish After Heat Pressing
When heat-pressed onto garments, it delivers a clean and premium finish with no dark edges.
100% In-House Manufacturing & End-to-End Quality Control
As a leading manufacturer in the optical functional materials industry with 23 years of expertise, we produce not only the reflective heat transfer vinyl but also the strontium aluminate photoluminescent pigment in-house. This vertical integration allows us to strictly control quality from the photoluminescent luminosity to reflectivity. We back our performance with scientifically measured luminance data, not just glow-hour claims.
How to Use Photoluminescent And Reflective HTV
We recommend pressing temperature: 135℃-155℃, pressing time: 9~15 seconds, pressure: 5~6 kg. After the reflective HTV is completely cooled, peel off the protective film to finish the heat pressing process.
The conditions should be adjusted according to actual production. Always run a small test before committing to production.
Frequently Asked Questions
No. The glow-in-the-dark layer charges from daylight or indoor light, then releases that energy as an afterglow in the dark. No electricity or batteries are needed.
Our glow-in-the-dark and reflective HTV can provide critical emergency lighting and guidance in the dark and during emergencies to reduce casualties and property losses.
The glow-in-the-dark material we use in our glow-in-the-dark and reflective HTV meets ISO 17398 Class C: over 150 mcd/m² at 10 minutes and over 20 mcd/m² at 60 minutes.
It can glow in the dark for over 12 hours; time measured until luminance decays to 0.3 mcd/m², which is the lowest light level detectable by the human eye.
MHC-9371B has an integrated structure, so it has a smooth and flat surface finish. It has a stronger afterglow intensity, and we recommend making it into a stripe design to maximize the glow area.
Our standard pattern photoluminescent and reflective HTV tape runs from 2 to 5 cm, with custom widths available.
You can also call us at 86-579-88948789. Our factory's work time is from 8AM to 5PM (UTC+8) Monday to Saturday.
Please let us know your application, requirements, and order amount, and we will reply to you by email and provide a quotation to you within 12hours. We always provide free samples for evaluation before bulk orders
