MHC-9343A Flame Retardant Cotton Photoluminescent Reflective Fabric

Short Description:

MHC-9343A is our flame retardant photoluminescent reflective cotton fabric with a ISO 17398 Class C grade luminosity and 330cd/ ( lx·㎡) reflectivity. It can be customed with different pattern designs, an excellent option for both safety protection garments and casual wear.

FOB price: GET LASTEST PRICE

PRICE: CONTACT US

Product Code: MHC-9343A

Attachment: Sew on

Luminosity: Class C Grade (10mins＞150mcd/㎡, 60mins＞20mcd/㎡)

Reflectivity: ≧330cd/ ( lx·㎡)

Wash Cycle: 50x wash, 25x dry clean

Day/Glow Color: Light yellow+silver/Yellow-green

Width: 2-5.4cm, custom

Send email to us Download as PDF

Product Detail

MHC-9343A Cotton Flame-Retardant Photoluminescent Reflective Fabric Description

ISO 17398 Class C Luminosity
EN ISO20471 & ANSI 107-2020 Reflectivity
OEKO-TEX 100
50X Wash Durability

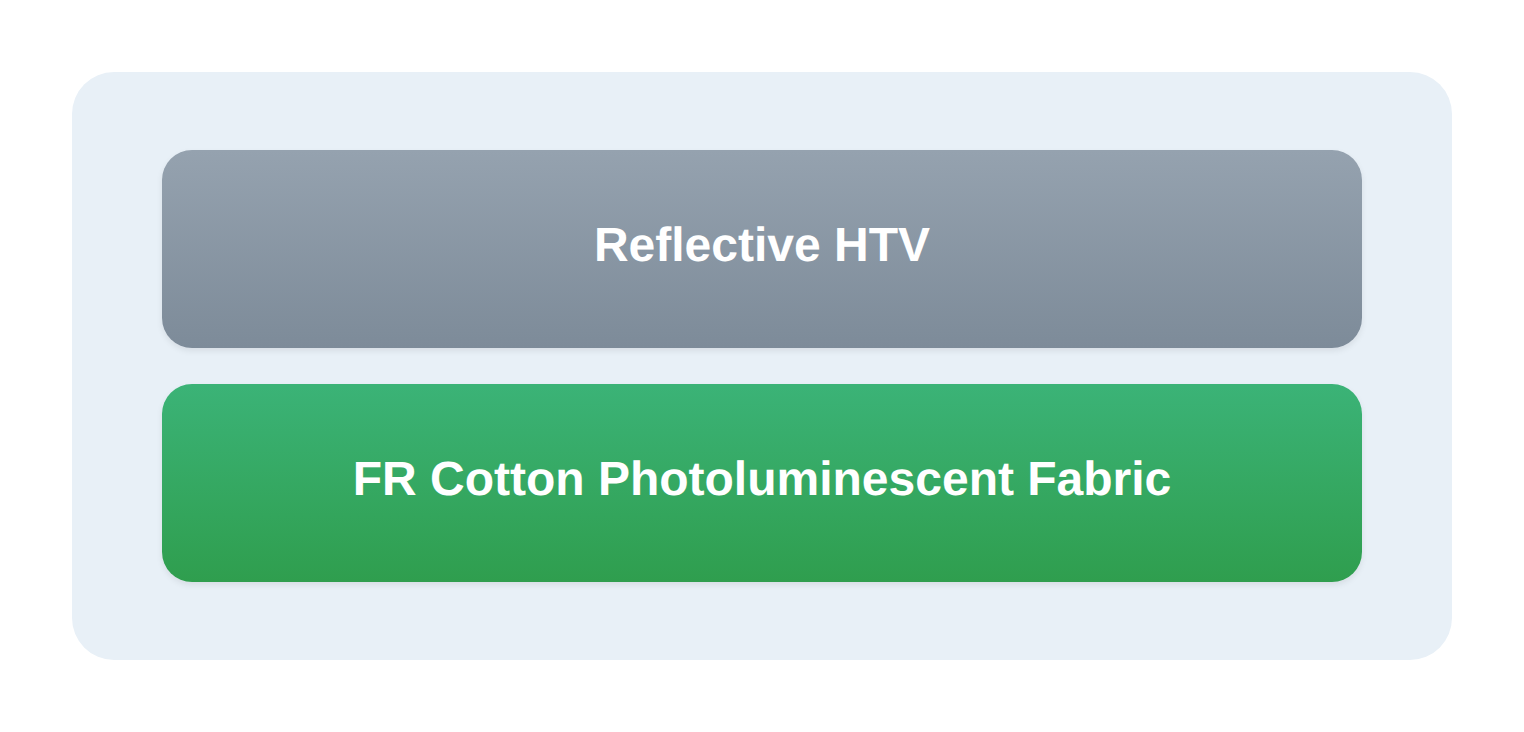

MHR-9371A glow in the dark and Reflective heat transfer vinyl structure

MHC-9343A is a cotton based flame retardant glow in the dark reflective fabric that not only reflects light but is also self-luminous. The dual luminous functions not only enhance garment aesthetics but also ensure reliable safety and visibility. MHC-9343A is made by compositing flame-retardant reflective HTV on top of our flame-retardant photoluminescent fabric, and we can make various patterns and logo per your design. It is a great choice for making hi-vis PPE, firefighter turnout gear, police uniforms, miner workwear, food delivery workwear, night running gear, sportswear, etc.

MHC-9343A Photoluminescent And Reflective HTV Specification

Our photoluminescent reflective fabric tape is available in six standard patterns, for custom pattern, please send us your design.

We can also customize the tape size, patterns, luminosity grades, and reflectivity levels to meet your specific requirements.

Product code	MHC-9343A
Product type	Cottom flame retardant photoluminescent reflective fabric
Base material	100% Cotton
Flame retardancy	EN ISO 14116, EN ISO 11612
Afterglow intensity	ISO 17398 Class C: 10 min >150 mcd/m², 60 min >20 mcd/m² Test Standard: DIN 67510-1, D65 light source, 1000 lux, 5 min excitation
Reflectivity	EN ISO 20471 and ANSI/ISEA 107: ≥330 cd/(lx·m²)
Material safety	OEKO-TEX 100 Standard
Wash durability	50 washes at 60°C (ISO 6330) and 25 dry clean cycles (ISO3175)
Width	2 to 5.4 cm, customized width available

Double photoluminesecnt stripeMHC-9343A-ZW01

double stripe glow in the dark and reflective HTV, daylight reflective and glow

Single photoluminesecnt stripeMHC-9343A-ZW02

single stripe glow in the dark and reflective HTV

TwillMHC-9343A-XW01

twill glow in the dark and reflective HTV

StaircaseMHC-9343A-XW02

double bend glow in the dark and reflective HTV

HoneycombMHC-9343A-H601

honeycomb glow in the dark and reflective HTV

SquareMHC-9343A-H401

square glow in the dark and reflective HTV

Add glow and reflection to your garments

We reply within 12 hours.

Get Sample

Why Choose MHC-9343A Photoluminescent And Reflective HTV

Photoluminescent performance: ISO 17398 Class C

Class C is the internationally recognized minimum luminosity grade for safety signage and evacuation systems.

Certified Hi-vis: EN ISO 20471 and ANSI/ISEA 107

Retroreflective tested ≥330 cd/(lx·m²).

OEKO-TEX STANDARD 100

We are the first Chinese manufacturer to pass the OEKO-TEX 100 standard for our glow-in-the-dark and reflective heat transfer vinyl and fabric.

100% In-House Manufacturing & End-to-End Quality Control

As a leading manufacturer in the optical functional materials industry with 23 years of expertise, we produce not only the reflective heat transfer vinyl but also the strontium aluminate photoluminescent pigment in-house. This vertical integration allows us to strictly control quality from the photoluminescent luminosity to reflectivity. We back our performance with scientifically measured luminance data, not just glow-hour claims.

How to Use Photoluminescent And Reflective Fabric

PPE with glow in the dark and reflective HTV tape

Our photoluminescent reflective fabric tape can be sew onto all kinds of garments and accessories. We recommend using a double-thread lockstitch sewing method, with no more than 5 stitches per centimeter and a minimum distance of 2 millimeters from the edge of the reflective fabricTo best care for the reflective fabric, use a household washing machine with a maximum temperature of 60℃, standard household detergent (do not use bleach). Drying temperature should not exceed 50℃, ironing at a medium temperature without steam.The conditions should be adjusted according to actual production. Always run a small test before committing to production.
