MHP-8129 Photoluminescent Heat Transfer Vinyl
Why Choose MHP-8129 Photoluminescent HTV
MHP-8129 Photoluminescent HTV Specification
We can customize the glow in the dark heat transfer vinyl's size (1cm - 160 cm wide), patterns, and luminosity grades to meet your specific requirements.
| Product model | MHP-8129 |
| Product type | Photoluminescent heat transfer vinyl (glow in the dark heat transfer vinyl) |
| Base material | PES hot melt adhesive |
| Afterglow intensity | ISO 17398 Class C: 10 min >150 mcd/m², 60 min >20 mcd/m²Test standard: D65 light source, 1000 lux, 5 min excitation |
| Glow duration | Over 12 hours, measured down to 0.3 mcd/m² |
| Material safety | OEKO-TEX 100 Standard |
| Wash durability | 50 washes at 60°C (ISO 6330) and 25 dry clean cycles (ISO 3175) |
| Day/glow color | Light yellow/yellow-green |
| Width | 1 to 160 cm |
Why Choose MHP-8129 Photoluminescent HTV
Heavy duty: wash and abrasion resistance

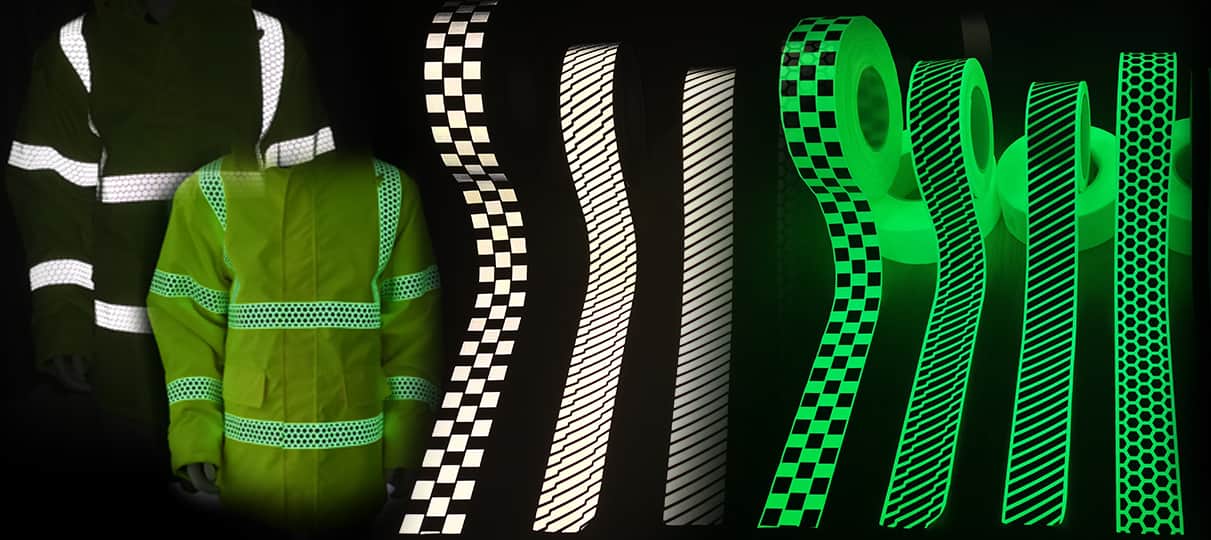

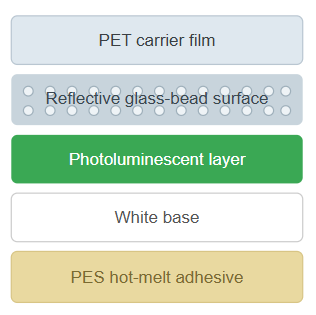

The reflective glass-bead surface gives MHP-8129 strong wash and abrasion resistance, making it the right choice for hi-vis PPE, workwear, and clothing that face heavy laundering and daily wear.
Photoluminescent performance: ISO 17398 Class C
Class C is the internationally recognized minimum luminosity grade for safety signage and evacuation systems. This photoluminescent HTV has high luminosity, long afterglow hours, and fast charge time.
Clean finish after heat pressing
When heat-pressed onto garments, it delivers a clean and premium finish with no dark edges.
100% In-House Manufacturing & End-to-End Quality Control
As a leading manufacturer in the optical functional materials industry with 23 years of expertise, we produce not only the finished glow-in-the-dark HTV but also the strontium aluminate photoluminescent pigment. We back our performance with scientifically measured luminance data, not just glow-hour claims.
How to Use Glow In The Dark Heat Transfer Vinyl
We recommend pressing temperature: 135℃-155℃, pressing time: 9~15 seconds, pressure: 5~6 kg. Please wait until the glow-in-the-dark HTV has cooled entirely before removing the PET protective film.
Note: Equipment and fabrics vary, and you need to adjust the parameters accordingly. We strongly recommend performing a small trial press before proceeding with bulk production.
Frequently Asked Questions
No electricity or batteries are needed for it to glow. Our glow in the dark HTV is made with strontium aluminate photoluminescent pigment, which charges from daylight or indoor light and then releases that energy as an afterglow in the dark. It can act as an emergency lighting and safety back-up during emergencies or in dark environments.
MHP-8129 photoluminescent heat transfer vinyl meets ISO 17398 Class C: over 150 mcd/m² at 10 minutes and over 20 mcd/m² at 60 minutes.
The afterglow stays visible for over 12 hours, measured down to the 0.3 mcd/m² perception threshold. Always compare glow material by measured mcd/m² values rather than glow-hour claims alone.
ISO 17398 is the international standard that classifies photoluminescent (glow-in-the-dark) safety materials by how bright they glow and how long the glow lasts. Each class specifies the minimum luminance (mcd/m²) the photoluminescent material must maintain at 2, 10, 30, and 60 minutes after the light source is removed.
Class C is a sub-classification from ISO 17398, which is the afterglow intensity level required for safety signage and evacuation systems.
Both are glow in the dark HTV with the same ISO 17398 Class C luminosity.
MHP-8129 has a reflective glass-bead surface that adds higher wash and abrasion durability, while MHP-7371 has a smoother finish and softer hand feel.
Choose the model that fits your needs, or contact us, and we will recommend the right one for you.
Our standard glow-in-the-dark HTV tape is 2 to 5 cm, we can also customize the width per your request from 1cm to 160cm.
Ordering from us is very simple. You can contact us by filling out the Contact Us form, or send your inquiry directly to our email sales@mphotoluminescent.com.
You can also call us at 86-579-88948789. Our factory's work time is from 8AM to 5PM (UTC+8) Monday to Saturday.
Please let us know your application, requirements, and order amount, and we will reply to you by email and provide a quotation to you within 12hours. We always provide free samples for evaluation before bulk orders.
